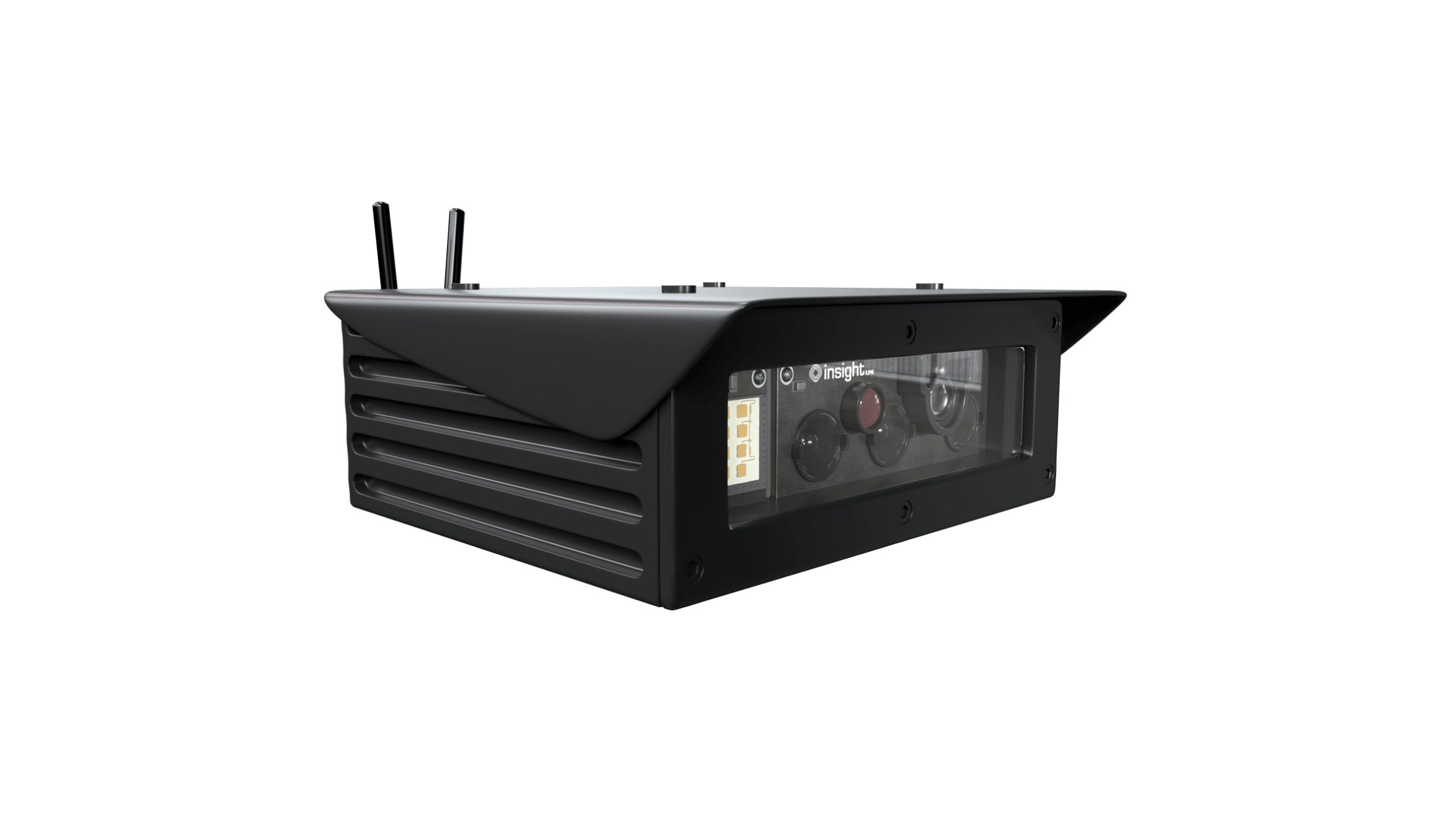

Matrix Edge
The Matrix Edge Intelligent system is a fixed camera that enables LPR over two lanes of traffic. The entire system was designed for optimum LPR performance in a robust and secure package.
Intelligent Dual IR/Color HD Cameras
Recognizes vehicle details like color and type without an external plate-to-VIN lookup, day or night
Captures accurate images at highway speeds and up to 130' away
Small Form Factor
7.1”w x 6.8”d x 2.1”h
1B+
plates scanned nationwide
WiFi
enabled
Small Form Factor
Weight:
4.2 lbs.
LTE
connected for instant alerts
24hr
day/night surveillance
Smarter monitoring
Our fixed cameras equip communities with real-time intelligence and intuitive functionality, adding observation capabilities to your premises and state-of-the-art investigative control and examination power.
Simple and secure
The Matrix Edge system was developed with ease of installation in mind. The system connects with only one ethernet cable, and all processing is done at the camera. Connect directly to modem or switch. No computer at edge required for processing.
Matrix Edge Capabilities
- Recognizes vehicle details like color and type without an external plate-to-VIN lookup, day or night
- Trigger action notifications
- 8x optical zoom
- Captures high-resolution images at highway speeds and up to 130′ away
Matrix Edge Technology
- The Matrix Central application may be installed on a local server or in the cloud
- Multiple lanes per camera (two in most cases)
Matrix Edge Support
- Access to historical hits
- Read buffering in case of communications failure, storage buffer in the camera
- Full remote management
- IT support staff, service help desk and customized training and reports
Matrix Edge Specifications
- Intelligent dual IR/color HD cameras
- Embedded processor
- Day and night operation
- High-output intelligent I/R
- Single IR wavelength for all states
- Vehicle speeds in excess of 200 mph
- Power consumption: nominally 12W
- Small form factor: 7.1”w x 6.8”d x 2.1”h
- Weight: 4.2 lbs.
- Military-grade 1080p cameras
- Housing: IP68 rating, military-grade aluminum
- Nitrogen-purged
- Temperature range: -30°C to +65°C
- Single ethernet connectivity-POE+
